Specifications
Features
Application
Download
Specifications
|

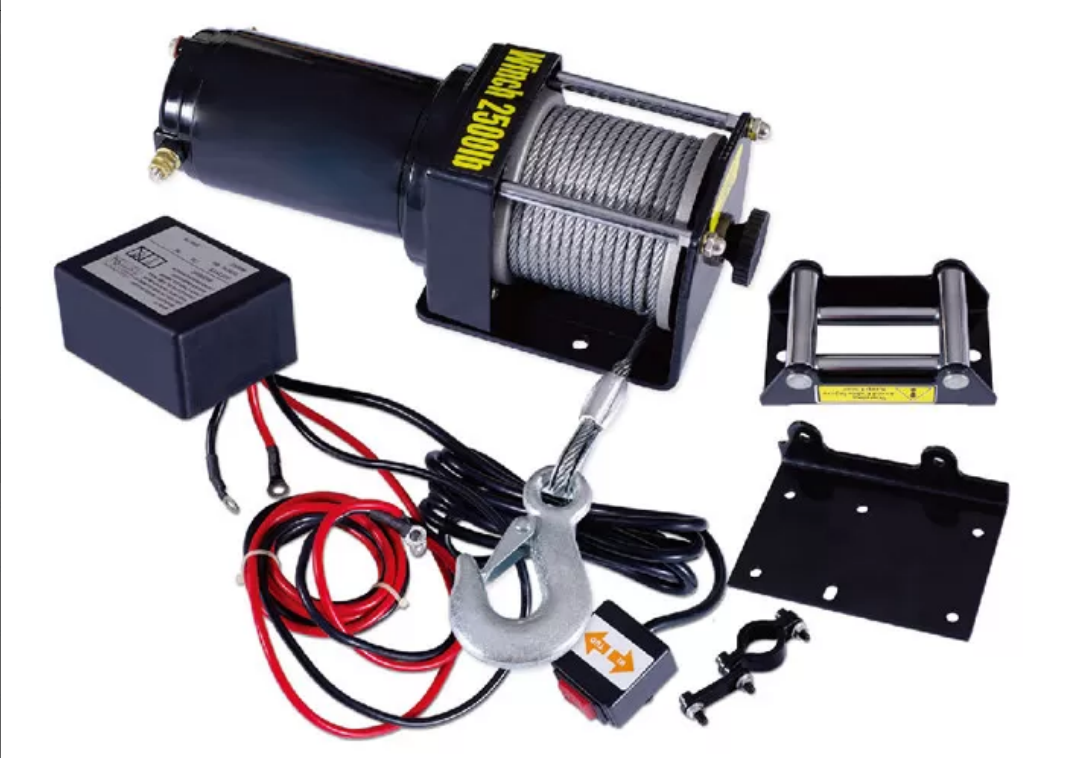

Model: |
EW2500C-1B(12V) |
|
Rated line pull: |
2500lb (1133kg) single line |
|
Motor: |
0.8KW/1.1HP 12V, permanent magnet |
|
Gear reductions ratio: |
153:1 |
|
Drum Dimensions: |
φ1.24″x2.88” (φ31.5mmx73mm) |
|
Cable (Dia X L): |
φ3/16”x45’ (φ4.76mmx14m) |
|
Overall dimensions: |
11.4”x4.1″x4.1″ (290x105x105mm) |
|
Mounting bolt pattern |
3.13″ (79.5mm) |
|
N.W. / G.W. |
17kg / 18kg |
Features
1.Features an all-metal planetary gear train plus mechanical and dynamic brake.
2.Free spooling clutch with ergonomic control.
3.Sealed solenoids guarantee all-weather protection.
4.Sealed handle switch and 10 feet remote.
5.Including roller fairlead and mounting plate.
Application
Download
Apply to: Boat trailer, Warehouse, Building, Wharf, Etc.
