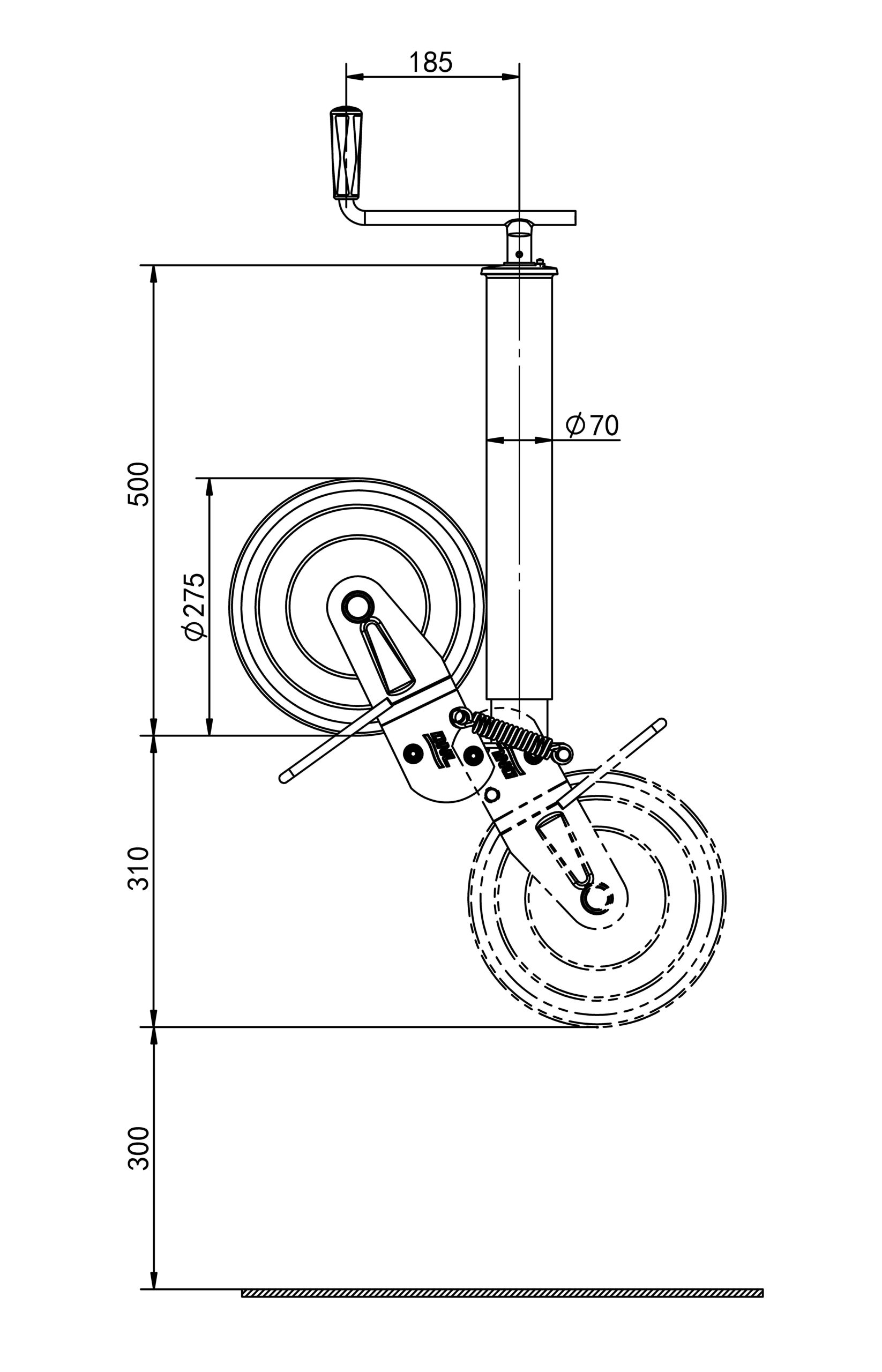

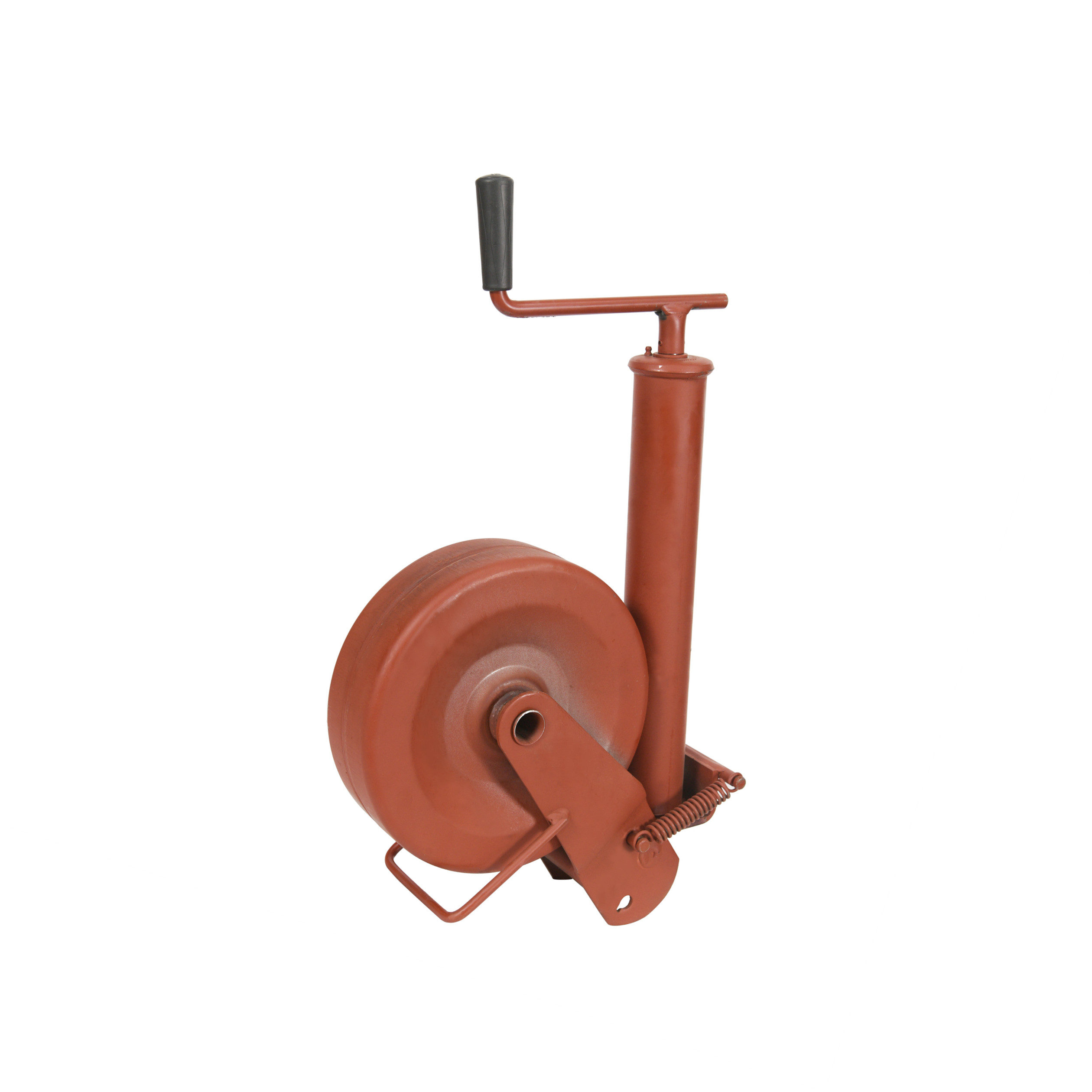

JK70-SW275P
Wheel jacks with semiautomated turnover and spring locking, with horizontal handle,275 X 70 Steel Wheel, 1000kg loading capacity
Specifications
Features
Application
Download
Specifications
Tube Type: |
Φ70mm |
Wheel: |
Steel Wheel, 275x70mm |
Length of Extension: |
300mm |
Load Capacity: |
1000kgs |
Weight of Unit Piece: |
14kgs |
Material: |
Mild Steel |
Feature: |
Semiautomated turnover and spring locking |
Finishing: |
Paint |
Packing: |
50pcs per plywood case (110x110x107cm) |
Features
High quality steel wheel supports the static loading capacity up to 1000kgs.
High quality paint brings high corrosion resistance.
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
Semiautomated turnover and spring locking takes operation more smoothly.
Application
Apply to:Construction trailers, Transportation Trailer,Agriculture vehicle, Industry vehicle, Building vehicle,, Heavy duty vehicle,etc.
