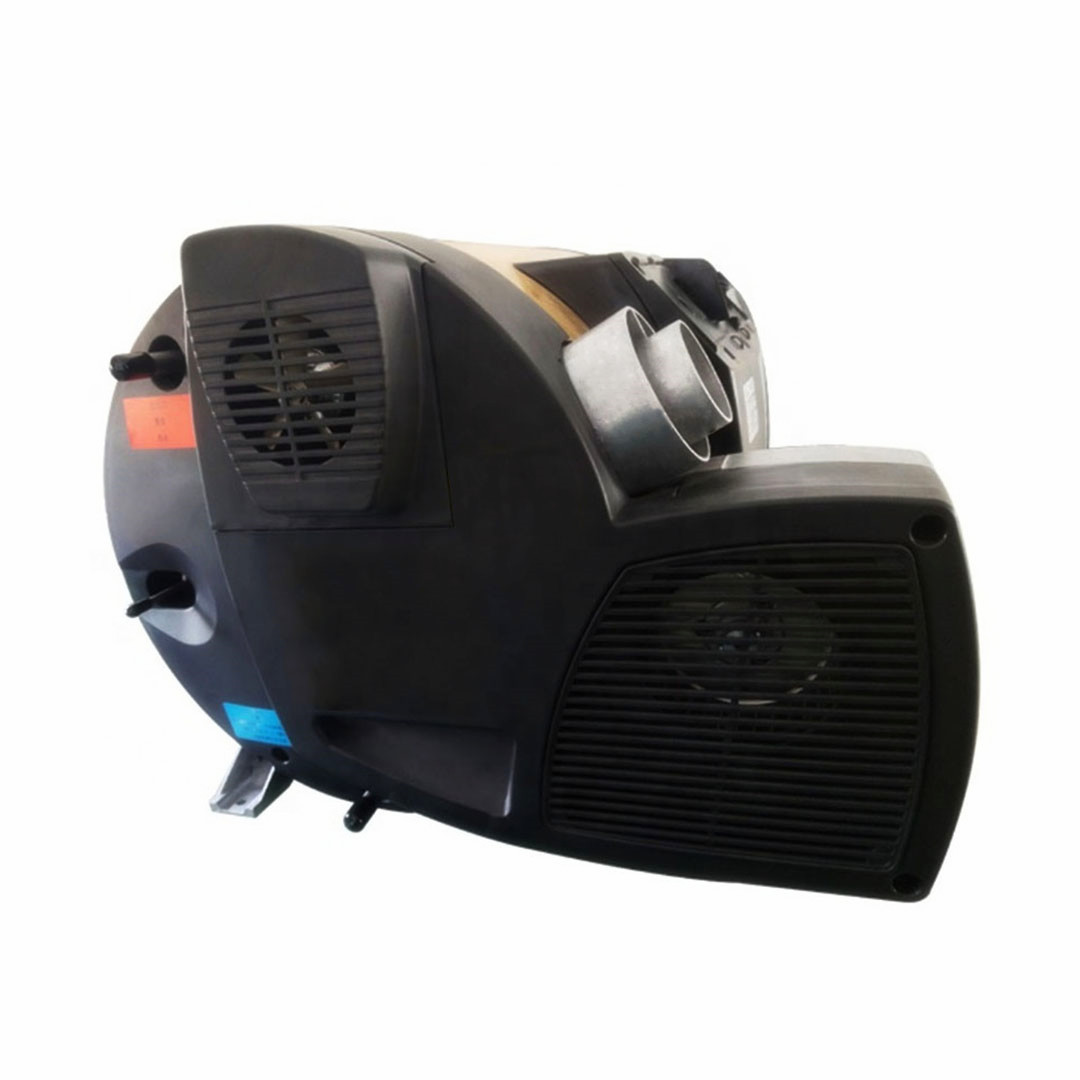

WH-Combi D4E



Power:	Eletric and Diesel
Certification:	CE
Rated Voltage:	DC12V
Operating Voltage Range:	dc10.5V-16V
Short-term Max. Power Consumption:	8-10A
Average Power Consumption:	1.8-4A
Fuel Consumption (g/H):	220/440/550
Quiescent current	1mA
Warm Air Delivery Volumne m3/h	287Max.

Feature: There are three energy options to choose from: Diesel Mode: Heater automatic adjust the power; The heater operates at the lowest power. Stop heating immediately after reaching the set temperature. Electrical Mode: Manually select the 900W or 1800W heating mode according to the power supply capacity of the RV camp site; Manually select the 900W or 1800W heating mode according to the power supply capacity of the camp site. Hybrid Mode: When the power demand is low (for example, maintaining the room temperature stage), the electrical heating is preferred. Until the city electricity cannot meet, the diesel heating is started, and the diesel heating function is turned off first in the power adjustment phase. In hot water working mode，gas mode or electrical mode is used to heat the tank. The tank temperature can be set to 40°C or 60°C.

Apply to: Box trailer, Horse trailer, Flat trailer,Caravan,Construction trailers, Lives stock trailer, Transportation Trailer,Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer, Heavy duty vehicle,etc.
